Medium Voltage Metal-Clad Switchgear Uses AMVAC Circuit Breaker

Sept. 16, 2014

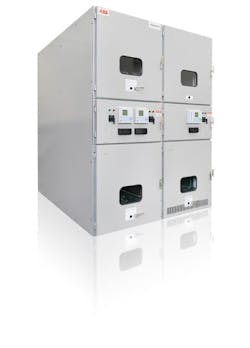

ABB’s Advance 27 medium voltage metal-clad switchgear product line, utilizing the AMVAC circuit breaker, answers the industry’s need for increased voltage ratings while decreasing O&M costs.

ABB has extended its proven medium voltage Advance switchgear product line with an enhanced solution known as Advance 27.

This addition to the non-arc-resistant Advance product line provides ABB customers with a 27 kV metal-clad switchgear product featuring a 36” wide product footprint, two-high 1200A breaker design and quality construction that increases personnel safety while decreasing space requirements. Advance 27, which is UL certified and meets ANSI and IEEE standards, features a Delrin arc-snuffing PT/CPT contact design and a separate LV compartment for personnel safety and ease of use. All breaker, PT and CPT compartments are designed for use with ABB’s SmartRack remote racking device, and the product line is fully supported by ABB Service.

In addition to the small footprint, Advance 27 incorporates ABB’s AMVAC circuit breaker, featuring the lowest maintenance requirements in the industry. The AMVAC utilizes technologies consisting of embedded vacuum interrupters and a magnetic actuator that eliminate maintenance on the operating mechanism and prevents coil and motor failure. The AMVAC is provided with a five year warranty as standard and has helped customers decrease O&M costs, increase reliability and increase safety since 1997.
