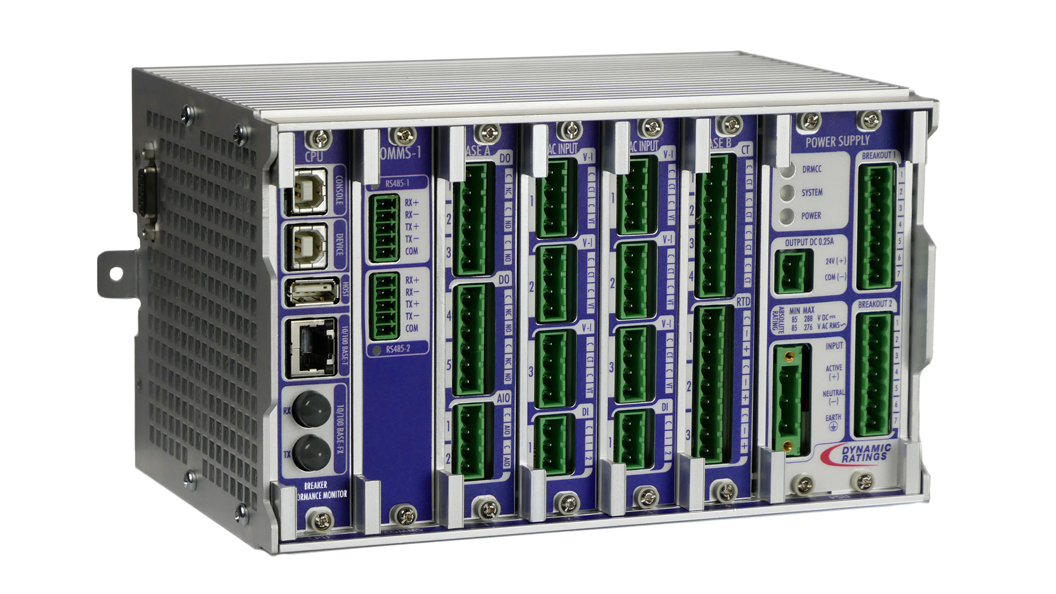

Bpm Left No Iu (1)

Dynamic Ratings Launches New Circuit Breaker Monitor

March 2, 2020
The circuit breaker monitoring system combines offline and online testing methods with high-speed waveform capture.

Dynamic Ratings’ new Breaker Performance Monitor (BPM) is a comprehensive circuit breaker monitoring solution for utilities. With high-speed waveform capture, the BPM combines offline and online testing methods. The modular design is a highly customizable online monitoring package, resulting in a monitor capable of performing the advanced analytics required to detect operating deficiencies well in advance of breaker failure.

High Speed Waveform Capture
This unique feature offers a complete diagnosis of the breakers’ mechanical and electrical systems with every operation. Waveform analysis allows for graphical comparison of breaker operations, facilitating detailed analysis of first trip open and close times, identification of latch and bearing performance, lubrication issues, auxiliary contact condition and fault current values.

Trip Coil Integrity Monitoring
The monitoring trip coil detects changes in the trip circuit resistance, indicating the condition of the trip coil and related components.

For more information visit https://www.dynamicratings.com/products/circuit-breaker-monitoring/.
