Meter Provides Wide-Area Visualization with Synchrophasors

April 21, 2015

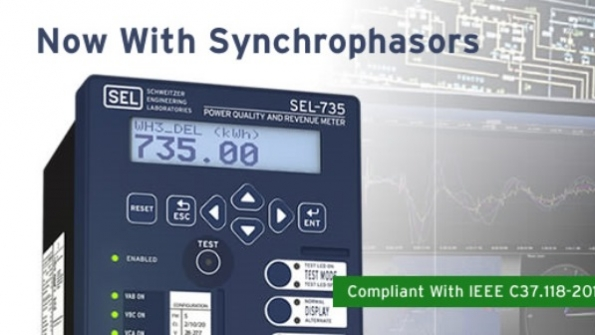

With synchrophasors, users can now collect real-time measurements of electrical quantities from every SEL-735 Meter across their system.

Schweitzer Engineering Laboratories, Inc. recently added synchrophasors to its popular SEL-735 Power Quality and Revenue Meter. With synchrophasors, users can now collect real-time measurements of electrical quantities from every SEL-735 Meter across their system. They can use synchrophasor data to perform wide-area control, validate system models, determine stability margins, maximize stable system loading, detect islanding, record system-wide disturbances and visualize dynamic system responses.

The SEL-735 supports the latest version of the synchrophasor standard, IEEE C37.118-2011 (as amended by IEEE C37.118.1a-2014) Class P, which makes it ideal for applications requiring fast response times under dynamic conditions. When used as a phasor measurement unit (PMU), this SEL meter provides synchrophasor data for frequency, phase, positive sequence components, four user-defined analog quantities and 14 digital status bits.

“The SEL-735 is designed as an economical yet high-performance meter,” said SEL R&D Manager Travis Mooney. “It passes accuracy requirements three times as stringent as the ANSI C12.20 Accuracy Class 0.2 standard. And, with three levels of power quality monitoring, it’s easy to tailor the SEL-735 to virtually any application or budget.”

The SEL-735 features full IEC 61000-4-30 power quality compliance along with industry-leading accuracy, ease-of-use, reliability and price. In addition, the combination of instrumentation transformer compensation and IEEE C37.118 is unique to SEL and the SEL-735 Meter. Customers can choose to correct delays and errors on each phase to achieve high system accuracy, even when using protection-grade transformers.
