Redundancy Solution Helps Substations Deliver the System Availability and Data Integrity

Feb. 17, 2015

PT-G503 "RedBox" is integrated PRP/HSR redundancy box to support Coupling and QuadBox protocols for maximum versatility.

Maintaining data integrity and the highest system availability are mission-critical objectives for electrical substations. Because their automation systems require zero recovery time redundancy to achieve uninterrupted power supply to end-users, RedBoxes (redundancy boxes) are installed so that network data can be transmitted by two independent active paths simultaneously between systems and distributed devices.

Tdworld Com Sites Tdworld com Files Uploads 2015 02 Pt G503 Phr Ptp Web Zpsf3688f9d

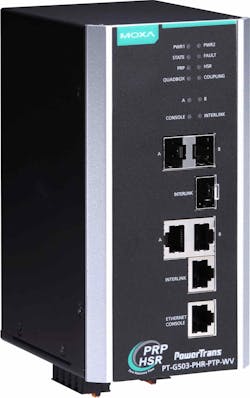

Moxa has introduced its PT-G503-PHR-PTP series of RedBoxes compliant with the new IEC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) standards, thus guaranteeing network security, scalability and interoperability in substations automation networks. In addition to supporting Gigabit, these all-in-one devices support Coupling and QuadBox redundant protocols, helping engineers deploy zero (0 ms) switch-over time networks that are more versatile and efficient with faster error detection. Each box comes with three 10/100/1000BaseT(X) and 100/1000BaseSFP slot combo ports, along with a built-in MMS server, based on IEC 61850-90-4 switch modeling for power SCADA.

In addition to the PT-G503-PHR-PTP RedBox, Moxa is also launching the DA-820 rackmount embedded computer, the world's first native PRP/HSR management server. With the PT-G503 RedBox and DA-820 native PRP/HSR management server, Moxa's PRP/HSR substation solutions can help users collect, analyze, and integrate raw data from various devices on one single management platform, enabling efficient and visualized PRP/HSR network management, and making network diagnosis, troubleshooting, and device condition monitoring easy.
