• Digital Voltmeters and Phasing Sets Measure Voltages up to 80 kV

    HDE's DVM-80 Series Digital Voltmeters and Phasing Sets are compact, high accuracy instruments designed to measure voltages up to 80kV.
    Oct. 15, 2013
    2 min read

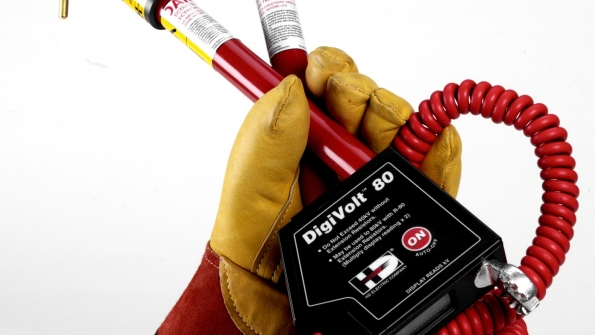

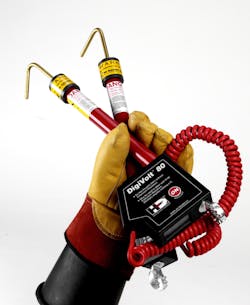

    HDE's DVM-80 Series Digital Voltmeters and Phasing Sets are compact, high-accuracy instruments designed to measure voltages up to 80kV The DVM-80 series incorporates Phase Accurate Technology, which makes all voltage readings, whether made from line-to-line or line-to-ground, accurate and repeatable to within 1%.

    There are 3 models: the DVM-80, DVM-80T with test point mode, and the latest exciting addition to the series, the DVM-80UVM. The DVM-80UVM is a compact, accurate dual stick voltmeter and phasing set with capacitive test point mode and peak hold. It measures voltage from 5 V to 40 kV and up to 80 kV with a pair of optional add-on resistors. The two-stick design can be used in both overhead and underground applications.

    Features and benefits include:

    • Peak Hold mode
    • Triple auto ranging 3.5 digit display - reads in kilovolts from 5 Volts to 80kV
    • Highly accurate, within 1% of the reading
    • Backlit display for easy reading in bright or dark conditions
    • Measures AC and DC voltages
    • Use on secondary voltages, starting at 5 Volts
    • Measure voltage on elbow test points, meter will display the system voltage
    • Test underground cables for faults
    • Auto shut-off
    • Powered by a 9V alkaline battery in an easy to change battery case - no tools required
    • Voltmeter weights 2.25 lbs.
    • Made in the USA

    The DVM-80UVM is available in a Universal Voltmeter Kit. HDE has packaged the DVM-80UVM with an assembly of accessories, offering it as a complete ready-to-use Universal Voltmeter Kit.
