Detector Distinguishes Between PD and Electrical Noise Easily

April 16, 2013
The new PD-SG1 first-level partial discharge (PD) detection instrument makes distinguishing between PD and electrical noise easy.

The new PD-SG1 first-level partial discharge (PD) detection instrument makes distinguishing between PD and electrical noise easy. Designed for use both in distribution voltage substations and EHV switchyards, it enables network operators to carry out simple routine tests that will identify weak points in the network.

The battery-powered portable device has a live ‘oscilloscope like’ display that shows detected activity resolved against the power cycle. In doing so it allows the user to clearly see whether detected signals are resulting from partial discharge or a noise source as is often found in industrial environments. A field detector placed near an HV cable picks up the phase synchronisation and sends the sync signals back to the PD-SG1 portable test unit wirelessly.

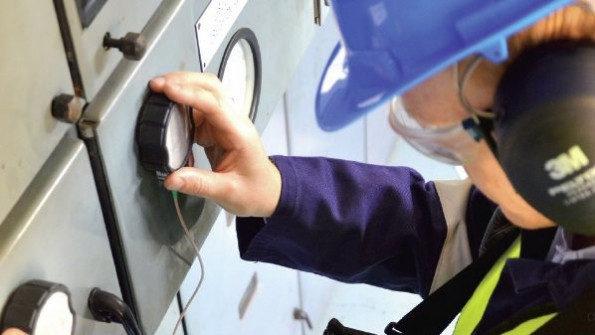

The PD-SG1 comes with TEV sensors for capacitive coupling to switchgear, HFCT sensors for cable PD detection and an ultrasonic sensor for detection of surface discharge and tracking. Stereo headphones are also supplied to help the user pinpoint the source of the activity and the location of the defect.
