Digger Derrick

Aug. 26, 2016
The D105 was specifically designed for transmission and heavy duty construction projects.

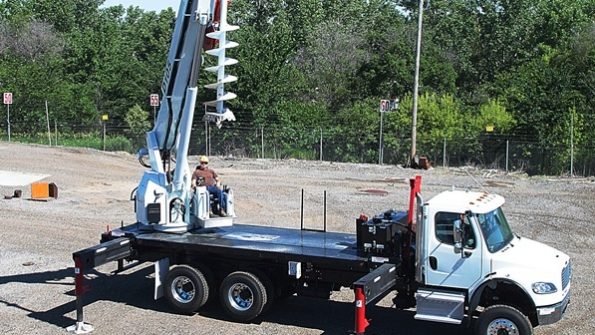

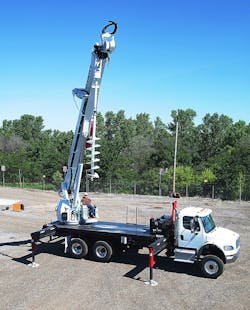

Elliott Equipment Co. has introduced the D105, a new ANSI 10.31 digger derrick.

The D105 was specifically designed for transmission and heavy duty construction projects. Mounted on a tandem axle chassis, the D105 Digger Derrick boasts a 107 foot sheave height, 20,000 foot-pounds of torque, and a 41 foot digging radius. The unit is equipped with Elliott’s high boom pin point geometry allowing for maximum power out of the hole, a variable displacement piston pump, and a new ergonomic seated control console.

Key Features of the D105 Digger Derrick include:

  • Four-section proportional steel boom with a 107 foot sheave height
  • Best in class 20,000 foot-pound high torque digger system with auger spin speeds of 35 RPM (low) and 80 RPM (high)
  • Digging radius of up to 41 feet and digging depth of up to 16 feet
  • Heavy-duty tilting pole claw attachment and pole guide designed for gripping large poles
  • New front-entry seated pedestal control station with LMI
  • Ability to handle augers up to 48 inch in diameter
  • 12,000 lb single line pull main winch with synthetic rope and 30,000 pound maximum lift capacity at a 10 foot radius
  • Mounts on tandem axle chassis
  • Radio remote control boom and digger operation
  • Optional out and down ‘EZ-CRIB’ high-penetration two-stage vertical outriggers with full or mid-span operation

Elliott Equipment Co.
