Birmingham UK Grid Now Reinforced with Superconducting Fault Current Limiters

April 21, 2016
Nexans’ sFCLs will future proof Birmingham’s grid to meet growing energy needs in the city

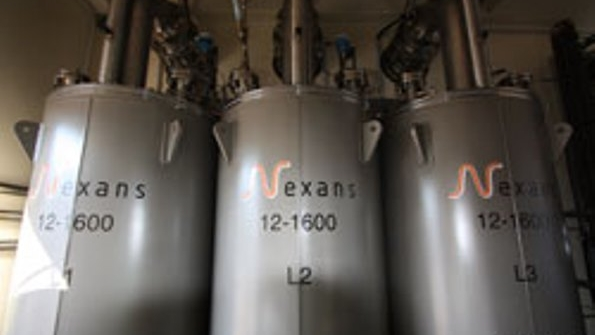

Western Power Distribution has integrated two superconducting fault current limiters (sFCL) from Nexans into Birmingham’s power grid. Nexans designed and manufactured both sFCLs (rated at 12 kV), now its third sFCL project in the UK.

Nexans delivered the first sFCL to the Chester Street substation in late 2015, and the second to Bourneville substation. Both sFCLs are now permanently integrated into the grid. The technology opens up new ways of designing distribution grids, such as with coupling busbars to maintain a reliable power supply during maintenance.

Nexans’ sFCLs are part of the FlexDGrid project which aims to increase the capacity of existing networks to facilitate the distribution of renewable energy in Birmingham. The £17M project will transform the grid in the city, reducing power cuts and carbon emissions.

Superconducting fault current limiters

sFCLs are already in use in locations around Europe. Since 2005, Nexans has successfully installed the technology at five other sites across the UK and Germany, including as part of the Ampacity project in Essen, Germany. The sFCL in Essen has been in successful operation since March 2014.

Nexans developed superconducting fault current limiters as part of its commitment to provide the most innovative and reliable solutions to future proof grids. sFCLs provide effective protection from fault currents, which constitute a growing issue in power grids. They can also help reduce the need for new substations.

The technology is based on the physical properties of the ceramic superconducting material employed. In its operating state, the material acts as a near perfect electrical conductor without ohmic resistance, and therefore doesn’t affect grid operations. A fault current, however, will transform the superconductor into a resistive material, increasing the resistance and reducing the fault current in a few milliseconds.
