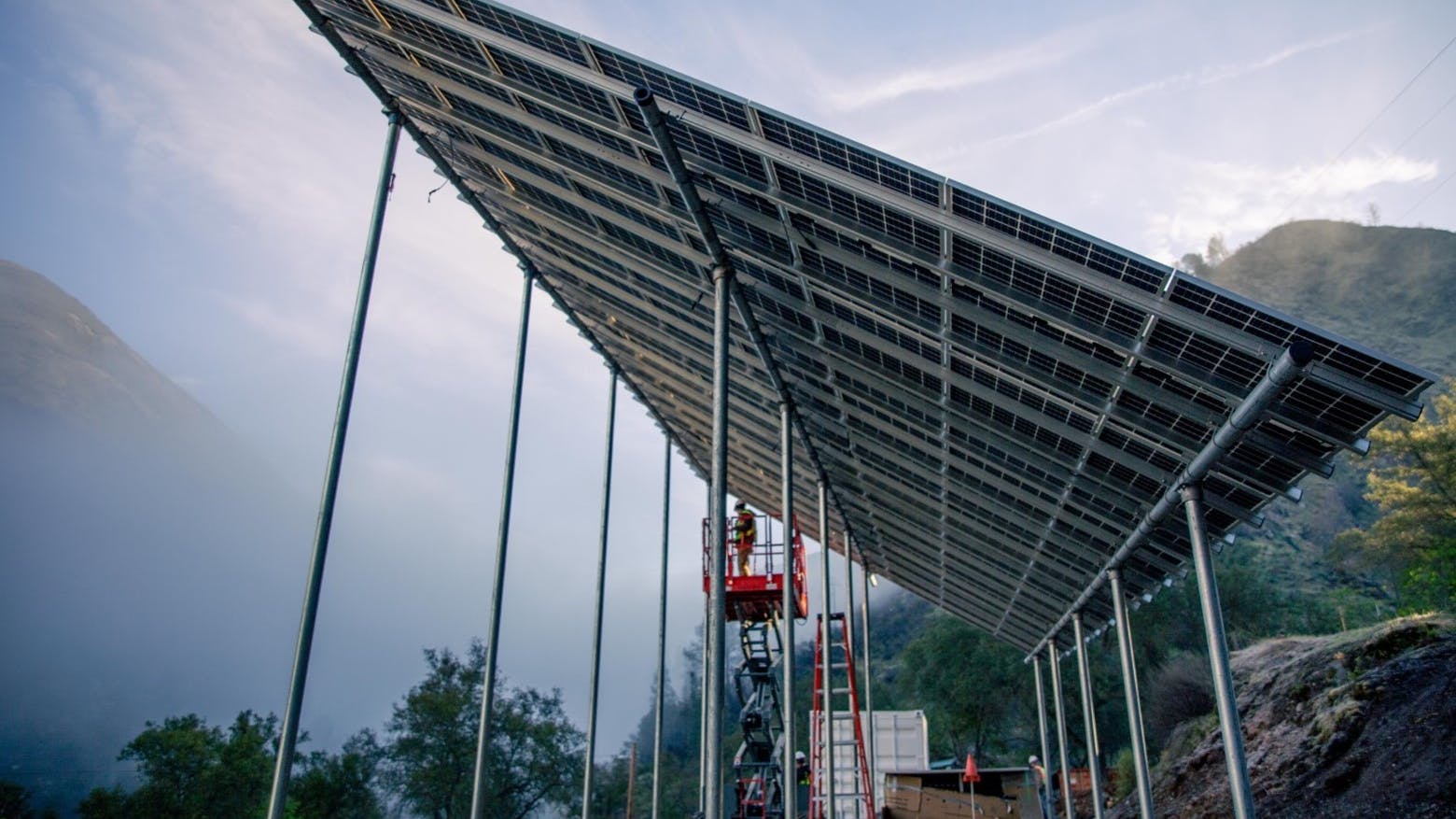

Construction crews installed an integrate system of solar, battery, and generator system. Photo courtesy of BoxPower.
Construction crews installed an integrate system of solar, battery, and generator system. Photo courtesy of BoxPower.

PG&E Remote Grid Delivers Wildfire Safety and Ratepayer Savings

Dec. 5, 2023
First of many stand-alone systems, integrate solar, battery storage, and generation.

Utilities are more and more having to take a proactive, vigilant posture in predicting and preventing damaging wildfires to their equipment. The frequency and severity of extreme weather events and natural disasters are increasing. Additionally, large areas across the West Coast of the United States are experiencing dry climates, drought conditions and strong winds. In California alone, 75,000 miles of overhead lines exist in High Fire Threat Districts (HFTD). Energy providers have achieved considerable progress in reducing risks within their service areas, however wildfires ignited by power lines remain a major challenge.

To meet this challenge head on, utilities are spending billions of dollars on distribution grid hardening initiatives. According to the Energy Information Administration, distribution spending has increased over 64% since 2000, which is a difference of roughly $22 billion. Utilities are utilizing a variety of risk mitigation strategies to tackle this issue, including vegetation management, conductor covering, undergrounding, data analytics, artificial intelligence, machine learning, and remote sensing technology. However, the relative expense of most conventional risk mitigation “wires” solutions versus distributed energy solutions in remote areas has created a new opportunity.

The Briceburg Fire in 2019

Situated amid the rugged landscapes of Briceburg, California, residents have long contended with the risks associated with natural disasters, which routinely challenge the resilience of local infrastructure. Since June 2021, Briceburg has witnessed a paradigm shift in energy reliability, marked by the advent of a groundbreaking solution that has consistently demonstrated resilience against the forces of nature, at a cost lower than traditional grid infrastructure.

In 2019, the Briceburg Fire decimated the power lines that served Briceburg, prompting a critical reassessment of infrastructure solutions. The historical line route was challenging to rebuild through the last 1.4 miles of rugged, HFTD terrain. Additionally, conventional alternatives such as hardened overhead lines or underground lines were not only costly, but posed feasibility challenges given the location.

This predicament led to collaborative work between BoxPower and PG&E, culminating in the implementation of an innovative Remote Grid system. A remote grid operates standalone from the centralized grid and permanently replaces existing distribution lines. This system was designed and engineered to withstand the diverse array of environmental challenges, thereby ensuring year-round reliable power supply to the residents of Briceburg. The objective transcended mere power supply continuity; it aimed at fortifying grid resilience and aligning with California SB100’s mandate to reduce greenhouse gas emissions, targeting 100 percent renewable electricity by 2045.

Solar + Storage Modular

For this project, BoxPower developed a dual solar array – one ground-mounted and one container-mounted – with a nominal PV power of 36.5kW and a 69.12 kWh lithium ferro phosphate battery bank.

The system is capable of delivering up to 27.2kW of continuous power output with a surge capacity of up to 48kW. Additionally, it incorporates two integrated 35 kVA propane prime power generators as a backup and features a fire suppression system, a crucial component in this high fire-risk area. Both PG&E and BoxPower can remotely monitor and control the system via satellite, ensuring performance monitoring, reporting, and automated propane delivery capabilities.

Since its commissioning in June 2021, the Briceburg remote grid has been a testament to resilience and steadfast reliability, maintaining 99.9999% power reliability through September 2023, with only 16 seconds of total downtime for the five customers it serves. The stand-alone power system has generated 94% of its power from renewable sources, the solar and battery components being primary, with only 6% emanating from the integrated dual propane generators primarily during winter. The design consideration by PG&E and BoxPower to integrate backup generators was pivotal, ensuring redundancy and guaranteeing uninterrupted off-grid power 24/7/365, a feature particularly crucial during the winter months when solar generation is inherently reduced due to shorter days and cloudier weather.

The Briceburg system’s operation during extreme weather events exemplifies its unmatched resilience. It remained operational without issues during a historic winter storm in December 2021 and weathered the August 2021 heatwave seamlessly. Moreover, during the 2021 Oak Fire, with a wildfire raging just a few miles away and PG&E proactively shutting down power to the entire area, the Briceburg standalone power system stood as an exception, continuously and safely powering PG&E customers including two residences, a visitor center, and telecommunications and transportation facilities. This resilience was again demonstrated in January 2023, when the Briceburg system remained unyielding during the atmospheric river storms in California, underlining the system's capacity to ensure power supply under diverse and challenging conditions.

Financially, BoxPower’s innovative solution can offer PG&E substantial savings compared to the alternative of reconstructing the previously destroyed distribution lines. The estimated cost of distribution line rebuilds and system hardening efforts can reach millions of dollars per mile.  Remote Grids are intended to meet customer needs at lower lifetime costs and a significantly lower risk of fire than conventional solutions in targeted rural locations.
According to the National Oceanic and Atmospheric Administration, billion-dollar disaster frequency due to climate change has increased by more than five times since the 1980’s. This combined with the fact that sixty percent of U.S. distribution lines are surpassing their 50-year life expectancy, means that grid reliability is at greater risk than ever. Uprooted trees, tree limbs, and other debris strewn about by powerful winds, mudslides or flooding resulting from winter storms or hurricanes can knock down poles and powerlines, causing long duration outages that affect vulnerable and rural citizens the most.

PG&E’s Remote Grid Program

PG&E’s collaboration with BoxPower and other microgrid venders, heralds a transformative era in energy infrastructure, with the successful Briceburg initiative serving as a steppingstone. As of November 2023, PG&E has four additional standalone power systems operating for a total of five operational systems, with plans for up to 30 systems deployed through 2026. PG&E has identified hundreds of potential locations for Remote Grids across its California service area, highlighting the adaptability of this innovative solution across various environments. PG&E is engaging with customers that reside in high-fire threat areas to provide a clean and wireless alternative to traditional grid power.

These Remote Grids are expected to provide better levels of electric reliability, significantly reducing service interruptions caused by weather and Public Safety Power Shutoff events.

PG&E is committed to redefining traditional grid infrastructure and mitigating wildfire risks through the removal of overhead powerlines, while simultaneously enhancing service reliability. The strategic development of remote grids signals a promising future in addressing utility-related challenges and advancing renewable energy solutions.
