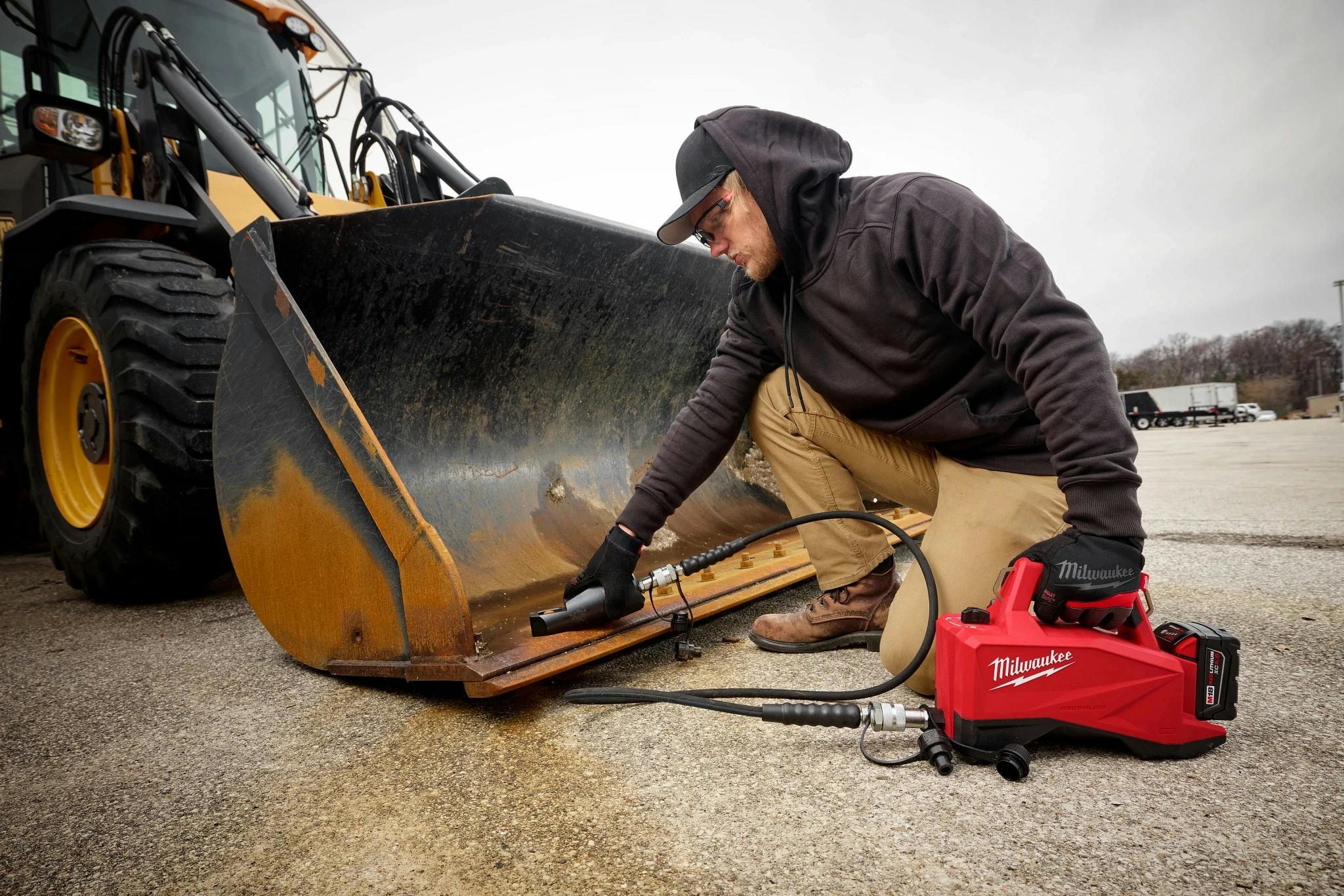

Milwaukee Tool eliminates the strenuous and frustrating experience of manual hand pumps with their new M18 Brushless Single Acting 60in3 10,000psi Hydraulic Pump. A direct replacement for manual hand pumps, Milwaukee’s single-acting hydraulic pump pushes fluid to the connected hydraulic cylinder or tool to lift, push, pull, punch, cut, split or spread materials. The hydraulic pump delivers improved efficiency on the job, whether lifting equipment to perform maintenance, wedging material or equipment apart to gain clearance or splitting nuts to replace a flange.
Improving productivity and increasing application speeds on the job site, this battery-powered hydraulic pump delivers up to 2.5 times faster application speeds than hand pumps. Delivering up to 95% less muscle effort versus a hand pump, the portable hydraulic pump allows users to simply pull the trigger and go, reducing fatigue caused by the repetitive motion of manually pumping at increasingly higher pressure. The pump features 60in3 of usable oil to extend a variety of different tonnage and stroke length cylinders to full stroke and is fully compatible with existing 10,000psi single-acting rated hydraulic hoses, cylinders and tools.
To control the return flow, a manual valve allows precise control when releasing pressure, and a bladder window allows users to gauge the fluid level quickly. When paired with an M18™ REDLITHIUM™ XC5.0 Battery Pack, the hydraulic pump can complete up to 20 lifts*, 100 splits**, or 175 spreads*** on a single charge.
Milwaukee is committed to improving productivity by providing performance-driven and trade-focused solutions so users can perform an entire day’s work on one battery system. The M18 Brushless Single Acting 60in3 10,000psi Hydraulic Pump is fully compatible with the entire M18 line, now offering more than 250 power tool solutions.
*Simulated Lift with 10T, 4” Cylinder at 7,000psi
** Splits 1” 8TPI Grade-5 Nuts
***Simulated Spread with 1T Spreader at 7,000psi
Specifications
M18™ Brushless Single Acting 60in3 10,000psi Hydraulic Pump (3120-21) - $1,500
- Maximum Operating Pressure: 10,000psi
- Cylinder Compatibility: Single Acting
- Reservoir Capacity: 60in3
- Output Flow Rate (No-Load): 18in3 / minute
- Output Flow Rate (9,500psi): 10in3 / minute
- Valve Operation: Manual
- Trigger Lock-Out: Yes
- Compatible with: Cone poppet and ball poppet male quick connect couplers
- Weight (w/ M18™ REDLITHIUM™ XC5.0): 12.6 lbs
- Length (w/ M18™ REDLITHIUM™ XC5.0): 18 in.
- Height (Tool-Only): 9.5 in.
- Width (Tool-Only): 5.4 in.
- Warranty: Three Years (Tool), Three Years (Battery)
Kit Includes:
(1) M18 Brushless Single Acting 60in3 10,000psi Hydraulic Pump
(1) M18 REDLITHIUM XC5.0 Battery Pack
(1) M18 and M12 Multi-Voltage Charger
(1) Shoulder Strap
(1) 3/8 in. NPTF Female Quick Connect Cone Poppet Coupler
|
